ACONTESTS.COM TMD2

General features

• Easy mount on trampoline
• Accurate (0.005 sec.) ToF and ToN measurement
• Synchronization deductions calculation
• USB interface

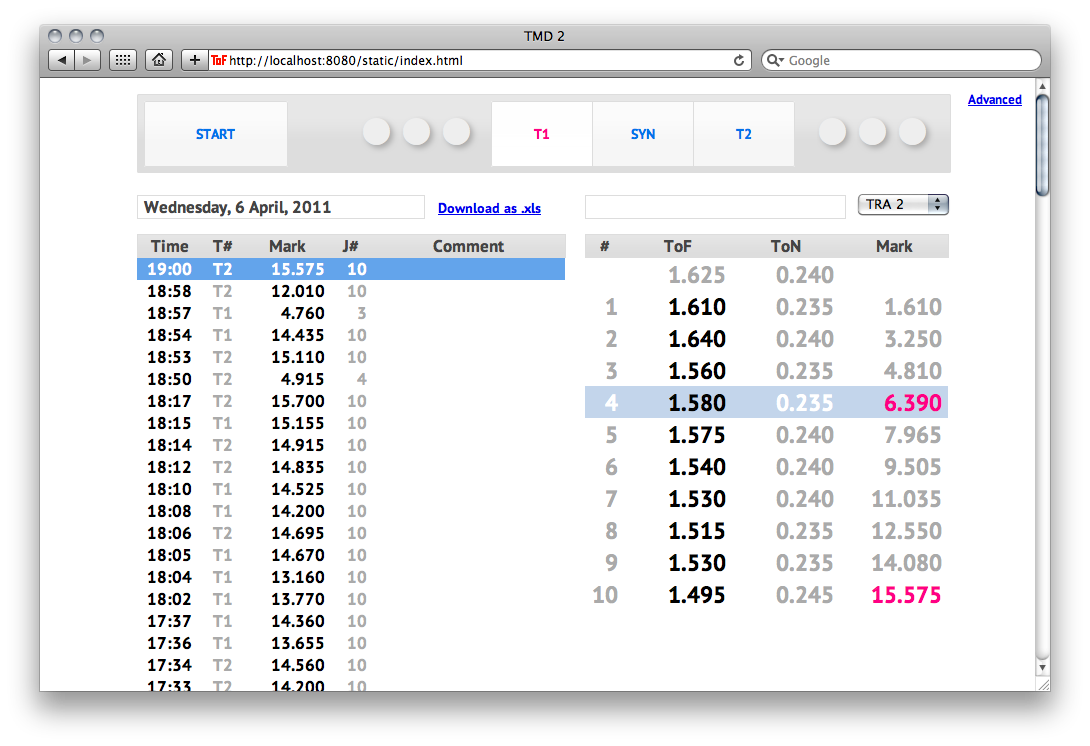

• Software for realtime measurements acquisition and storage
• Software for ToF measurement using technical video (VTimer)
• Works with PC and Mac

Package contents

• 4 TMD sensor blocks, processing block and USB block
• Mounting cramps
• All necessary cables

Differences from TMD1

• Controlled directly from computer (START/STOP, jumps review, etc.)
• Laptop/workstation is mandatory for operation
• Measure ToN (time on net) in addition to ToF
• Easier mount on trampoline (all 3 sensors for each trampoline are in a single body)
• Much improved software
  • Easier software setup
  • Correction of START button press time
  • TRA1/TRA2/SYN mode selection during or after the exercise
• Significant price reduction

Software installation

Windows:

1. Download and install Google Chrome or Mozilla Firefox, make sure it is set as your default browser
2. Download and install FTDI driver
3. Download ToF-monitor software archive
4. Unpack the archive to the folder of your choice
5. Run launcher.exe to start ToF-monitor; the page will open in your default browser

Mac OS X (10.8 or later recommended):

1. Download and install FTDI driver
2. Download ToF-monitor software disk image
3. Launch the install script from the disk image. When asked, enter your password in the Terminal (please note that characters will not appear in Terminal when you will be typing it)
4. Run «TMD2 Start» from the disk image to start the software. To quit it, close the Terminal window and web browser

Keyboard shortcuts

• Space – start/stop the execution
• 1 – set trampoline 1 (T1) as active
• 2 – set trampoline 2 (T2) as active
• 0 – set synchro (SYN) mode as active
• Enter – set comment for the current exercise (for software version 2 and later)

If you have any troubles installing or running the software, please consult the software troubleshooting guide.

Mounting on the trampoline

Please note that TMD2 units should be installed on the inner edge of the safety platform.

Remote Control

Remote control is currently available from iOS devices (iPad/iPhone/iPod).
If your computer and an iOS device are conneted to the same Wi-Fi network then it would be possible to control the TMD2 from the iOS device.

1. Find out your computer's IP address in the local network
   HowTo: Go to 'Start > Run', type in 'cmd' in the box and press enter.
   Type 'ipconfig' (in the new black box) and press enter.
   All connections and IP addresses of the computer would be displayed.
2. Run ToF-monitor software on your computer.
3. On iOS device open Safari web browser and type in the following address: 'http://computer_ip_address:8080/'.
4. Now ToF-monitor is opened on your iOS device and you are able to conrol TMD2 remotely.

Support

Please contact us by e-mail [email protected].
